Electric Belt Type HZS60 Concrete Batching Plant Concrete Batching Machine
Electric Belt Type HZS60 Concrete Batching Plant Concrete Batching Machine include JS1000 Twin shaft Concrete Mixer, PLD1600-4 bins Belt Concrete Batching Machine, 100T Cement Silo, 219*8m Screw Conveyor and Control Panel etc which is automatic concrete mixing equipment, suitable for roads, bridges, dams, airports, ports such as construction projects and commodity concrete demands.
Electric Belt Type HZS60 Concrete Batching Plant Concrete Batching Machine is a combined device used for mixing concrete. Because of its mechanization, high degree of automation, so the productivity is also high, and to ensure the quality of concrete and save cement, commonly used in concrete engineering, long construction period, the site concentration of large and medium-sized water conservancy and electric power engineering, bridge, etc. With the development of municipal construction, it is of great advantage to use centralized mixing and mixing station.

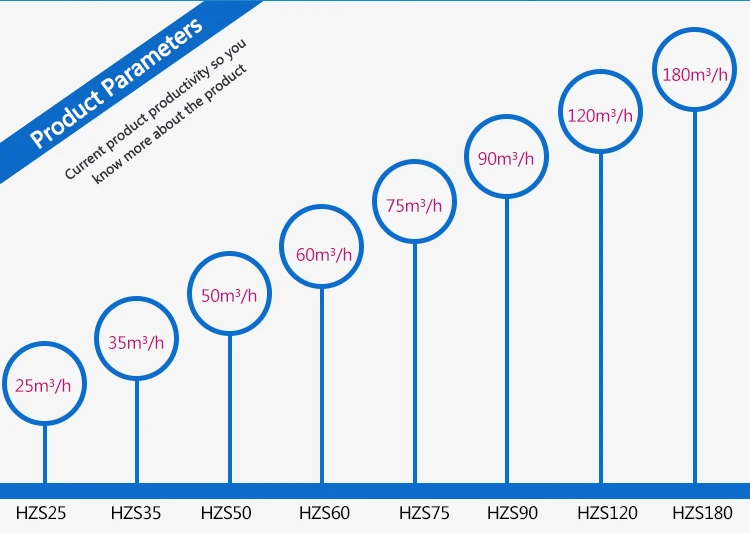

Main Parameter information of Electric Belt Type HZS60 Concrete Batching Plant Concrete Batching Machine
| Model | HZS60 |
| Productivity6 | 60 m³/h |
| Type of Mixer | JS1000 |
| Mixing Volume | 1000 L |
| Feeding Way | Belt Type |
| Discharge Height | 4.1m |
| Aggregate Bins | 4 |
| Aggregate Weighing Range | 2000 kg |
| Cement Weighing Range | 1000 kg |
| Max. Aggregate Size | 80/60 mm |
| Total Power | 56.65 kw |
| Total Weight | 45 T |
Product details of Electric Belt Type HZS60 Concrete Batching Plant Concrete Batching Machine
Weighing system
In accordance with the national standards of measurement and weighing, sand and gravel from the loader into the concrete batching machine. After measuring, aggregate will be conveyed by a belt conveyor into the middle of the mixer located in the middle of the warehouse.
Mixing system
The mixing system is the core system of the concrete mixing station. We use international advanced compulsory twin-shaft JS 1000 concrete mixer. And obtained the national patent shaft seal to prevent mud leakage.
Storing system
PLD1600 Batching machine, which could be used for 3-4 different kind of materails.
Cement silos store powdery materials such as cement and fly ash. The powdery material is communicated with the ash inlet pipeline through the bulk cement conveyor, and directly sent to the powdery silo for storage. Finally, it is conveyed to the concrete mixer by a screw conveyor.
Additive weighing
On top of the concrete mixer, the prefabricated additives and water are mixed into the mixer and mixed with the weighed powder for the first time in the mixer.
Control system
The Control system is divided into two types of fully automatic and semi-automatic. Full automatic is equipped with PLC, that be able to print a variety of statements, clear response. Semi-automatic control panel, low cost.
More Photos of Electric Belt Type HZS60 Concrete Batching Plant Concrete Batching Machine
